Installation

TL;DR

If you have Docker already installed on your system, you can install DBRepo with:

curl -sSL https://gitlab.phaidra.org/fair-data-austria-db-repository/fda-services/-/raw/release-1.7/install.sh | bash

Default installation security disclaimer

This quick default installation should not be considered secure. It is intended for local testing and demonstration and should not be used in public deployments or in production. It is a quick installation method and is intended for a quick look at DBRepo.

Requirements

We only support the Debian 12 operating system officially. In theory, any DEB-based operating system (e.g. Ubuntu) should be compatible. Any modern hardware suffices, we recommend a dedicated virtual machine with the following settings.

• min. 8 vCPU cores
• min. 8GB free RAM memory
• min. 200GB free SSD storage

Since DBRepo is intended to be a publicly available repository, an optional fixed/static IP-address with optional SSL/TLS certificate is recommended. Follow the secure installation guide.

Secure Installation

Execute the installation script to download only the environment and save it to dist.

curl -sSL https://gitlab.phaidra.org/fair-data-austria-db-repository/fda-services/-/raw/release-1.7/install.sh | DOWNLOAD_ONLY=1 bash

Static Configuration

Call the helper script to regenerate the client secret of the dbrepo-client and set it as value of the AUTH_SERVICE_CLIENT_SECRET variable in the .env file.

Update the rest of the default secrets in the .env file to secure passwords. You can use openssl for that, e.g. openssl rand -hex 16. Set auth_ldap.dn_lookup_bind.password in dist/rabbitmq.conf to the value of SYSTEM_PASSWORD.

Only set the BASE_URL environment variable in .env when your hostname is not localhost.

Runtime Configuration

The Auth Service can be configured easily when DBRepo is running. Start DBRepo temporarily:

docker compose up -d

Log into the Auth Service with the default credentials admin and the value of AUTH_SERVICE_ADMIN_PASSWORD (c.f. Figure 1) and select the "dbrepo" realm . In the sidebar, select the "User federation" and from the provider list, select the "Identity Service" provider .

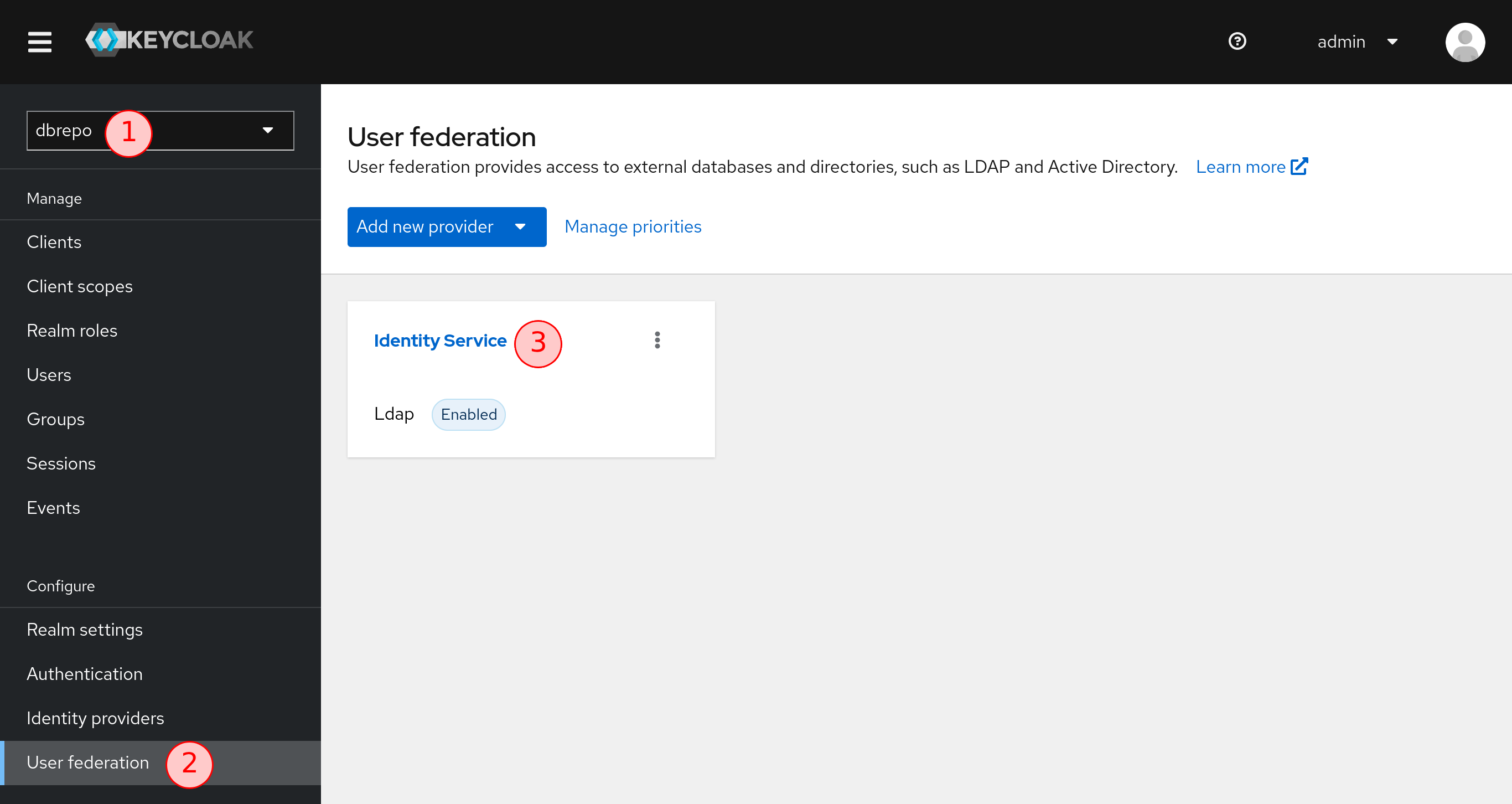

Figure 1: Select the Identity Service provider.

If you plan to change the default admin username (c.f. Figure 2), modify the Bind DN but this is optional. Change the Bind credentials to the desired password from the variable IDENTITY_SERVICE_ADMIN_PASSWORD in .env.

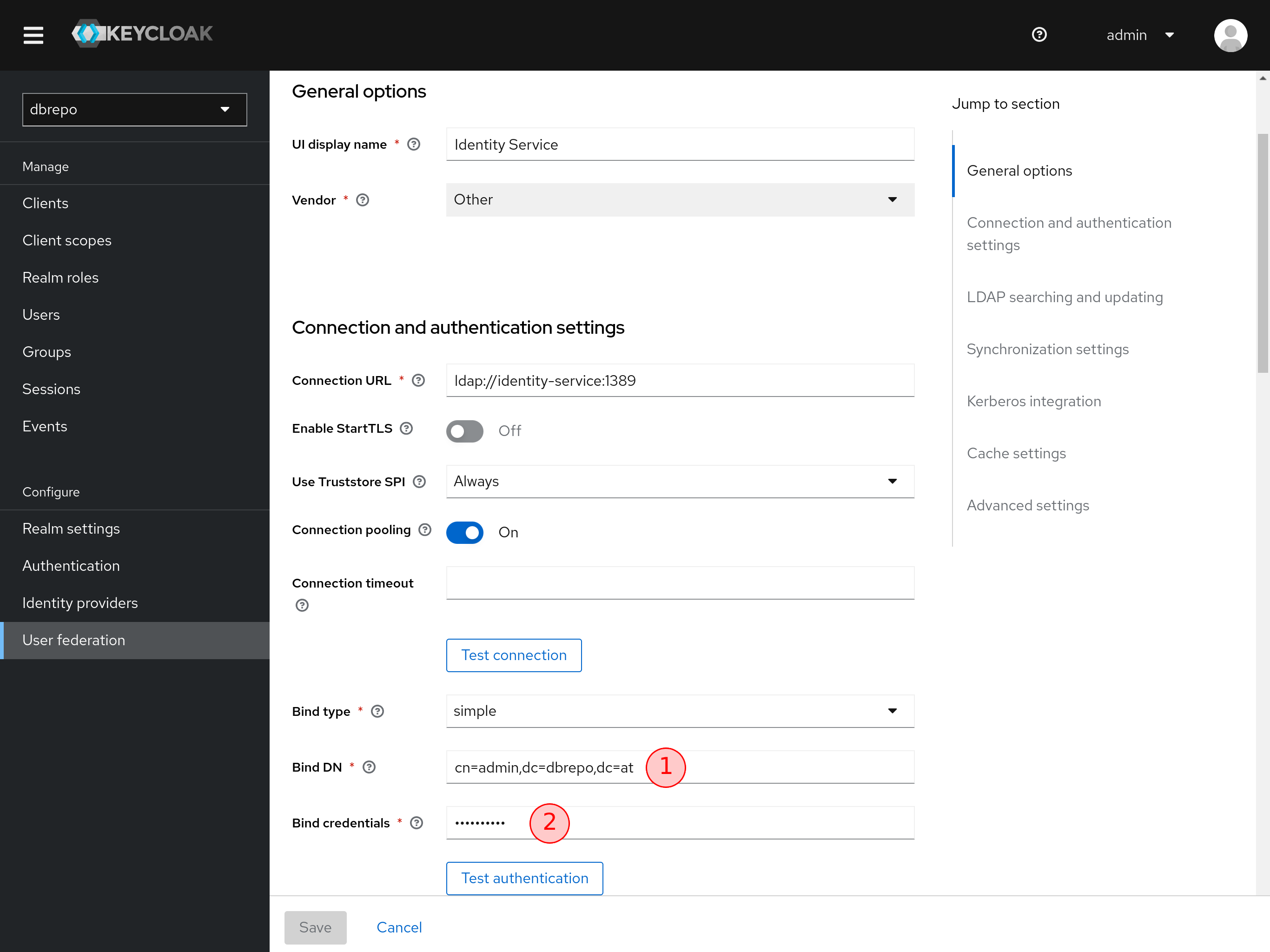

Figure 2: Update the Identity Service admin user credentials.

Update the client secret of the dbrepo-client:

curl -sSL "https://gitlab.phaidra.org/fair-data-austria-db-repository/fda-services/-/raw/release-1.7/.scripts/reg-client-secret.sh" | bash

Also, update the JWT key according to the Keycloak documentation. To secure your deployment traffic with SSL/TLS, tell the Gateway Service to use your certificate secret (e.g. from Let's Encrypt):

docker-compose.yml

services:
  ...
  dbrepo-gateway-service:
    ...
    volumes:
      - /path/to/cert.crt:/app/cert.crt
      - /path/to/cert.key:/app/cert.key
    ...

Now redirect all non-HTTPS routes to HTTPS in the Gateway Service:

dist/dbrepo.conf

server {
    listen 80 default_server;
    server_name _;
    return 301 https://$host$request_uri;
}

server {
    listen 443 ssl default_server;
    server_name my_hostname;
    ssl_certificate /app/cert.crt;
    ssl_certificate_key /app/cert.key;
    ...
}

Apply the Configuration

Restart the configured DBRepo system to apply the static and runtime configuration:

docker compose down
docker compose up -d

The secure installation is now finished!

Troubleshooting

In case the deployment is unsuccessful, we have explanations on their origin and solutions to the most common errors:

Are you trying to mount a directory onto a file (or vice-versa)?

Origin: Docker Compose does not find all files referenced in the volumes section of your docker-compose.yml file.

Solution: Ensure all mounted files in the volumes section of your docker-compose.yml exist and have correct file permissions (0644) to be found in the filesystem. Note that paths containing directories may not work when using Windows instead of the supported Linux.

The Docker images have been updated but my deployment is not receiving the updates

Origin: Your local Docker image cache is not up-to-date and needs to fetch the remote changes.

Solution: Update your local Docker image cache by executing docker compose pull, it automatically downloads all Docker images that have updates. Then apply the new images with docker compose up -d.

Error response from daemon: Error starting userland proxy: listen tcp4 0.0.0.0:xyz: bind: address already in use

Origin: Your deployment machine (e.g. laptop, virtual machine) has the port xyz already assigned. Some service or application is already listening to this port.

Solution: This service or application needs to be stopped. You can find out the service or application via sudo netstat -tulpn (sudo is necessary for the process id) and then stop the service or application gracefully or force a stop via kill -15 PID (not recommended).

IllegalArgumentException values less than -1 bytes are not supported

Origin: Your deployment machine (e.g. laptop, virtual machine) appears to not have enough RAM assigned.

Solution: Assign more RAM to the deployment machine (e.g. add vRAM to the virtual machine).

HTTP access denied: user 'admin' - invalid credentials

Origin: The broker service cannot bind to the identity service due to wrong configuration.

Solution: This is very likely due to a wrong auth_ldap.dn_lookup_bind.password in rabbitmq.conf. The error indicates that LDAP check is not even attempted.

Next Steps

You should now be able to view the front end at http://localhost.

Please be warned that the default configuration is not intended for public deployments. It is only intended to have a running system within minutes to play around within the system and explore features. It is strongly advised to change the default .env environment variables.

Next, create a user account and then create a database to import a dataset.

Limitations

Alternative Deployments

Alternatively, you can also deploy DBRepo with Kubernetes in your virtual machine instead.
