Contributing

We welcome contributions to DBRepo!

Dependencies

Local development depends on the following packages for Debian 12:

apt install -y maven openjdk-17-jdk make

Required tools with their own installing guides:

Getting Started

The Java-based services share some classes from the metadata-service. You need to install them locally as Maven library via:

mvn -f ./dbrepo-metadata-service/pom.xml clean install -DskipTests

Testing

We practice test-driven development and require contributors to test their code with at least 90% code coverage.

make test

The Java-based services have the coverage reports generated by JaCoCo in the report/site/ subdirectory, the Python-based services have the coverage reports generated by coverage in the .coverage SQLite3 database and coverage.txt log file respectively.

We run SonarQube quality checks on the master branch regularly to ensure security, maintainability and remove code smells. The internal instance can be found at https://s34.datalab.tuwien.ac.at/ (requires internal authentication).

Code Versioning

Branching Strategy

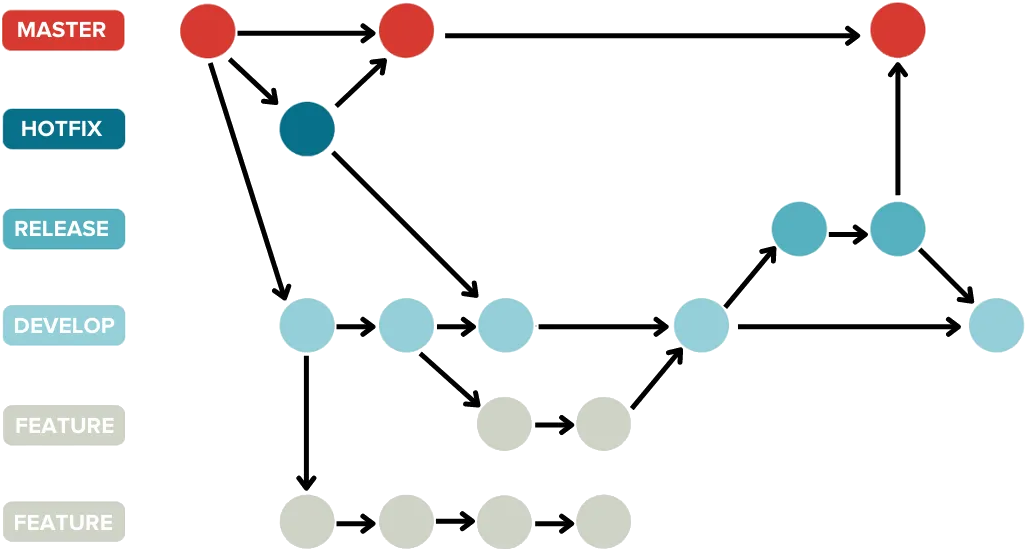

Branching strategy from the master-dev-feature branches and release branches

Figure 1: Branching strategy of the source code development.

CI/CD

We get compute resources in-kind from dataLAB to run our pipeline:

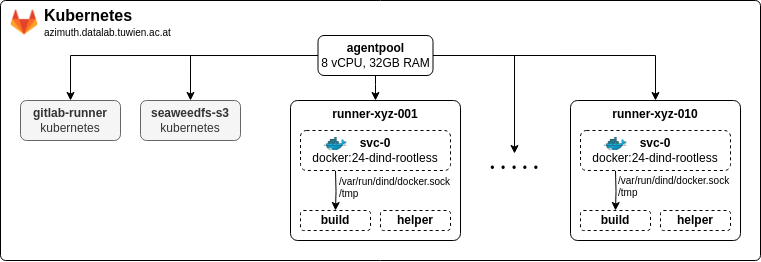

Gitlab runner configuration in the cluster

Figure 2: Gitlab runner configuration in the cluster.

Kubernetes cluster with PVC-enabled provisioner with 8 vCPU and 32GB RAM. The CI pipeline is configured as follows in the config.toml:

concurrent = 10
[[runners]]
  executor = "kubernetes"
  environment = [
    "FF_USE_LEGACY_KUBERNETES_EXECUTION_STRATEGY=false"
  ]
  [runners.cache]
    Type = "s3"
    Shared = true
    [runners.cache.s3]
      ServerAddress = "storageservice-s3:9000"
      ...
      Insecure = true
  [runners.kubernetes]
    namespace = "{{.Release.Namespace}}"
    privileged = true
    allowed_services = ["docker:24-dind"]
    [[runners.kubernetes.services]]
      name = "docker:24-dind"
      alias = "docker"
    [[runners.kubernetes.volumes.empty_dir]]
      name = "rundind"
      mount_path = "/var/run/dind"
      medium = "Memory"
    [[runners.kubernetes.volumes.empty_dir]]
      name = "tmp"
      mount_path = "/tmp"
      medium = "Memory"

For each job in the CI/CD pipeline, a pod with three containers is started:

  1. build the main build container, you can freely specify any image with image: xyz as base
  2. helper the default helper container.
  3. svc-0 the Docker-in-Docker sidecar (rootless executed as user rootless/1000) exposing the Docker socket to the build container under `

Note. Only Docker-in-Docker (dind) is allowed as service in the pipeline currently. For each job, a dind-sidecar container svc-0 is started that exposes the Docker socket at /var/run/dind/docker.sock in the build container you can freely configure how you want. We are aware this is not optimal as it exposes root privileges in the cluster.

Documentation

For consistency reasons across the documentation, the resolution needs to be 1280x800 (16:10 ratio)

Roadmap

  • Q1: Python library, versioning in every component, bumping frontend versions, i18n
  • Q2: Kubernetes deployment guidelines for OpenShift
  • Q3: Frontend tests, database dashboards
  • Q4: Release of 2.0.0
