Customization

tl;dr

Debug Information

Image: registry.datalab.tuwien.ac.at/dbrepo/ui:1.4.7

  • Ports: 3000/tcp

To directly access in Kubernetes (for e.g. debugging), forward the svc port to your local machine:

kubectl [-n namespace] port-forward svc/ui 3000:80

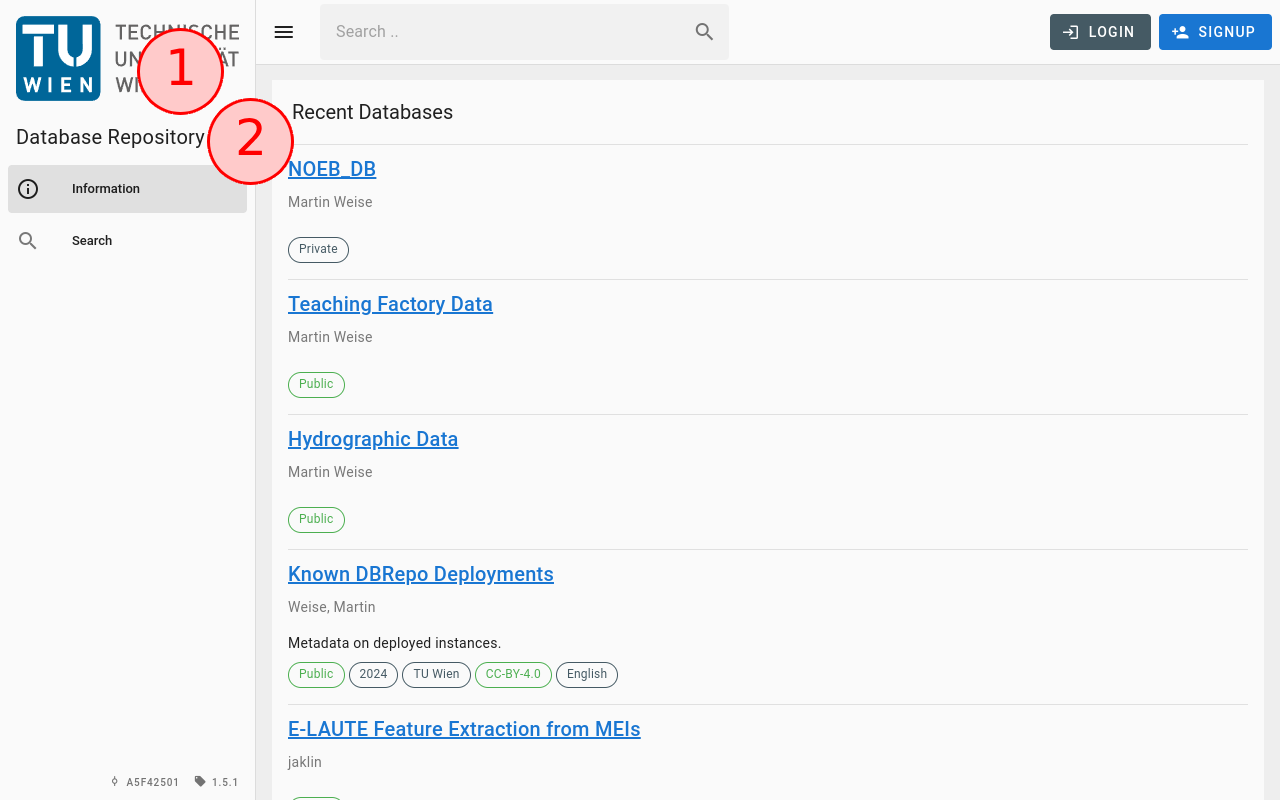

The User Interface is configured in the runtimeConfig section of the nuxt.config.ts file during build time. For the runtime, you need to override those values through environment variables or by mounting a .env file. As a small example, you can configure the logo in Figure 1. Make sure you mount the logo as image as well, in this example we want to mount a custom logo my_logo.png into the container and specify the name.

Architecture of the UI microservice

Figure 1: Architecture of the UI microservice

Text values like the title can be configured as well via the Nuxt runtime configuration through single environment variables or .env files.

.env
NUXT_PUBLIC_TITLE="My overriden title"
NUXT_PUBLIC_LOGO="https://mydomain/my_logo.png"
NUXT_PUBLIC_ICON="https://mydomain/my_favicon.ico"
...

To work, you need to serve the my_logo.png and my_favicon.ico from a separate webserver. Note that simply copying the files into the Nuxt public/ directory will not work as the content length is calculated only during build time. The development team #19263 does not plan to fix this.

Text values like the title can be configured as well via the Nuxt runtime configuration through adding the logo file as ConfigMap.

kubectl [-n namespace] create configmap gateway-service-config \

Then you need to mount the configmap into the Gateway Service under /etc/nginx/assets/assets.

dbrepo-ui-custom.yaml
gatewayservice:
  extraVolumes:
    - name: config-map
      configMap:
        name: gateway-service-config
  extraVolumeMounts:
    - name: config-map
      mountPath: /etc/nginx/assets/assets

All files mounted that way are accessible through svc/gateway-service:80 (or ingress if you enabled it) with prefix /assets, e.g. https://<hostname>/assets/logo.png. Therefore, set the logo path:

values.yaml
ui:
  public:
    api:
      logo: "https://<hostname>/assets/logo.png"
...

Architecture

The server-client architecture of the User Interface is shown in Figure 2, it is supposed to help debug the User Interface on development.

Architecture of the UI microservice

Figure 2: Architecture of the User Interface

Example

See the API Overview page for detailed examples.

Limitations

  • Changing the OIDC provider URL requires to build the UI from scratch.
  • When developing locally, the axios module does not parse custom headers (such as X-Count, X-Headers) and/or blocks CORS requests wrongfully.

Do you miss functionality? Do these limitations affect you?

We strongly encourage you to help us implement it as we are welcoming contributors to open-source software and get in contact with us, we happily answer requests for collaboration with attached CV and your programming experience!

Security

(none)
