Auth Service

tl;dr

Debug Information

Image: docker.io/bitnami/keycloak:26.0.0-debian-12-r1

• Ports: 8080/tcp
• UI: http://<hostname>:8080/

To directly access in Kubernetes (for e.g. debugging), forward the svc port to your local machine:

kubectl [-n namespace] port-forward svc/auth-service 8080:80

Overview

By default, users are created using the User Interface and the sign-up page in the User Interface. This creates a new user in Keycloak. The user identity is then managed by the Auth Service. Only a very small subset of immutable properties (id, username) is mirrored in the Metadata Database for faster access.

Identities

1.4.5

Identities are managed via LDAP through the Identity Service. The normal workflow is that the Metadata Service adds identities when user register. In some cases, where this is not possible (e.g. in workshop-scenarios where accounts are created before the workshop starts), identities need to be created manually in Keycloak. The recommended workflow is:

1. Login to the Auth Service as Admin and in the dbrepo realm navigate to Users
2. Click the Add user button and fill out the Username field and assign the group researchers by clicking the Join Groups and selecting it. Click Join and Create.

3. Click the Credentials tab above and Set password. In the popup window assign a secure password to the user and set Temporary to Off.

   Create user with specific id

   The user id is created automatically. In case you need to create a user with specific id such as in migration scenarios, you need to change the entryUUID in the Identity Service by modifying this protected attribute in relax mode:

   echo "dn: uid=<username>,ou=users,dc=dbrepo,dc=at
   changetype: modify
   replace: entryUUID
   entryUUID: 506ae590-11a2-4d2d-82b8-45121c6b4dab" | \
   ldapmodify -h localhost -p 1389 -D cn=admin,dc=dbrepo,dc=at -c -x -e relax \
   -w<adminpassword>


4. Finally you need to query the user info once by navigating again to Users and search for the Username and click to search. Click the username and ensure that the User metadata contains the entry LDAP_ID.

Groups

The authorization scheme follows a group-based access control (GBAC). Users are organized in three distinct (non-overlapping) groups:

1. Researchers (default)
2. Developers
3. Data Stewards

Based on the membership in one of these groups, the user is assigned a set of roles that authorize specific actions. By default, all users are assigned to the researchers group.

Roles

We organize the roles into default- and escalated composite roles. There are three composite roles, one for each group. Each of the composite role has a set of other associated composite roles.

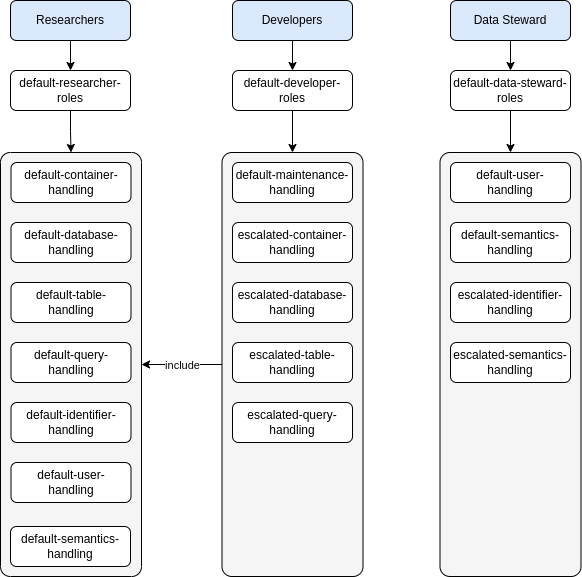

Three groups (Researchers, Developers, Data Stewards) and their composite roles associated.

There is one role for one specific action in the services. For example: the create-database role authorizes a user to create a database.

A full list of available roles can be obtained from dbrepo-realm.json which is imported into Keycloak on startup.

Limitations

Do you miss functionality? Do these limitations affect you?

We strongly encourage you to help us implement it as we are welcoming contributors to open-source software and get in contact with us, we happily answer requests for collaboration with attached CV and your programming experience!

Security

1. Keycloak should be configured to use TLS certificates, follow the official documentation.
